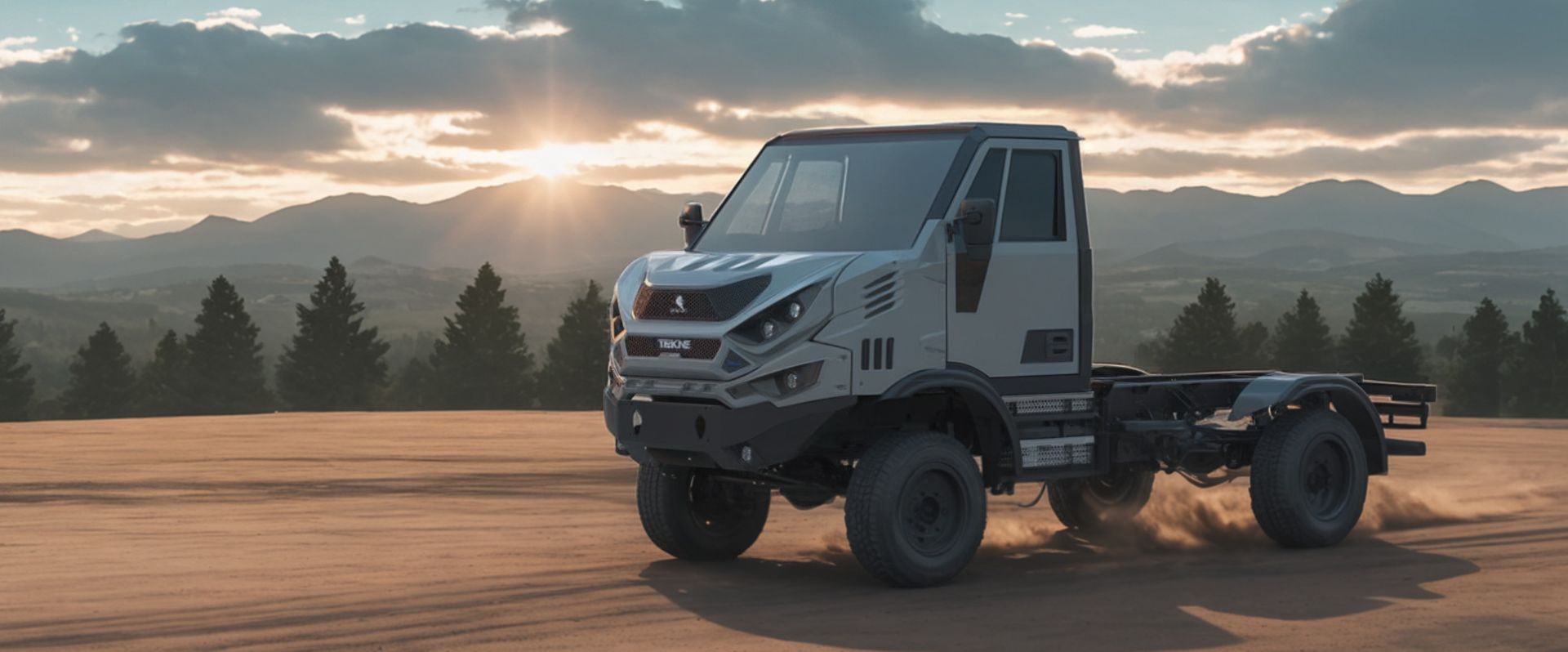

GRAELION 85

The new 4x4 Heavy Duty Multipurpose by TEKNE

It's here! Even in "on-road" version

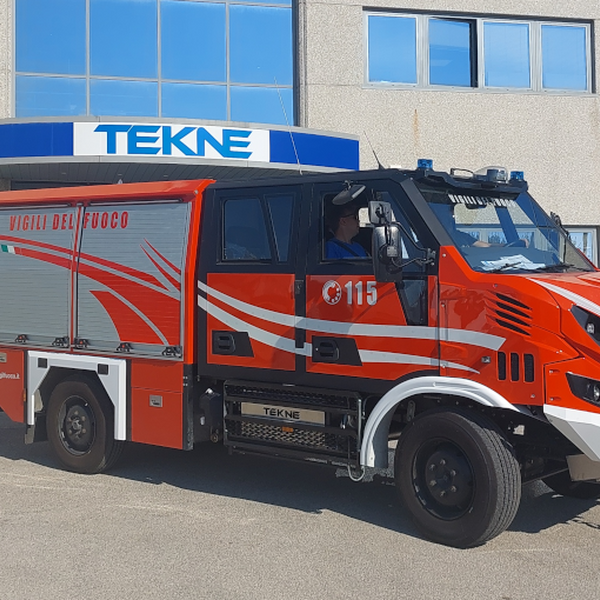

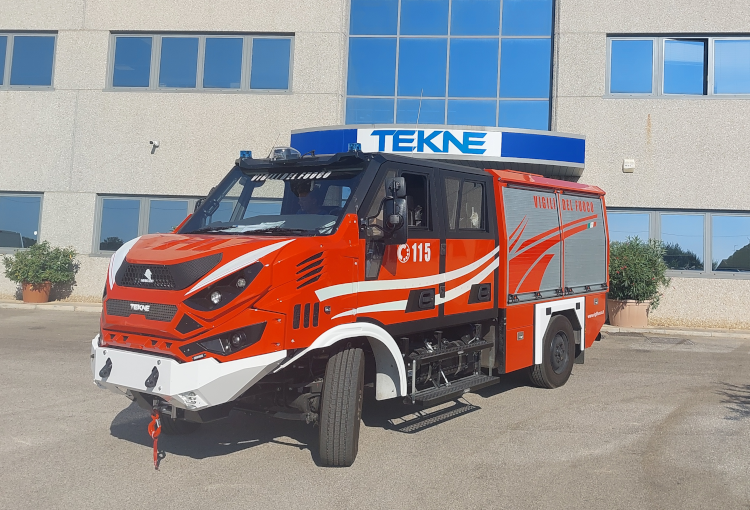

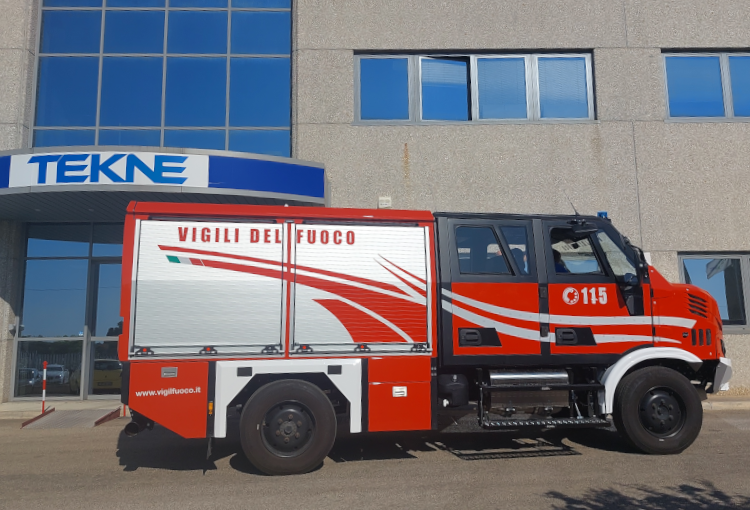

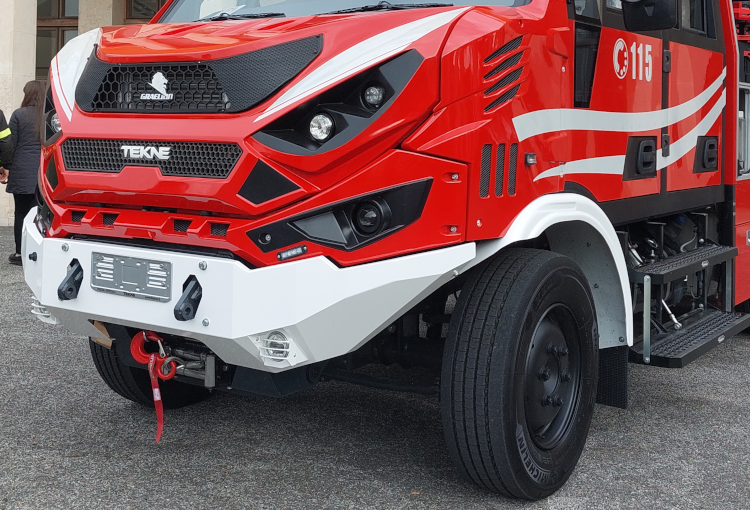

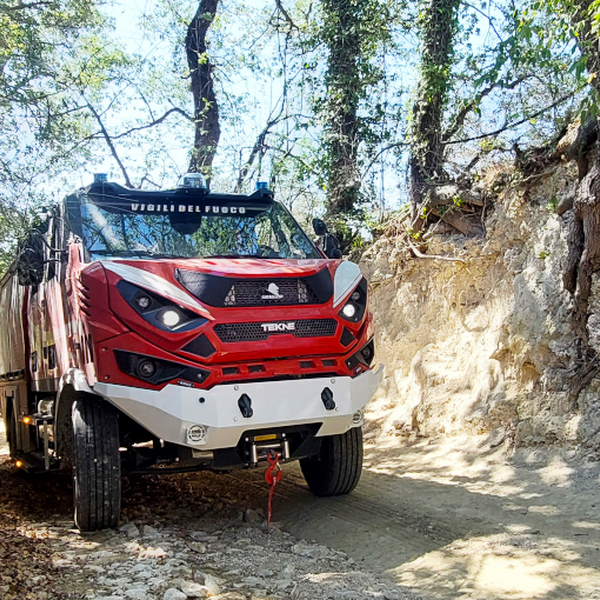

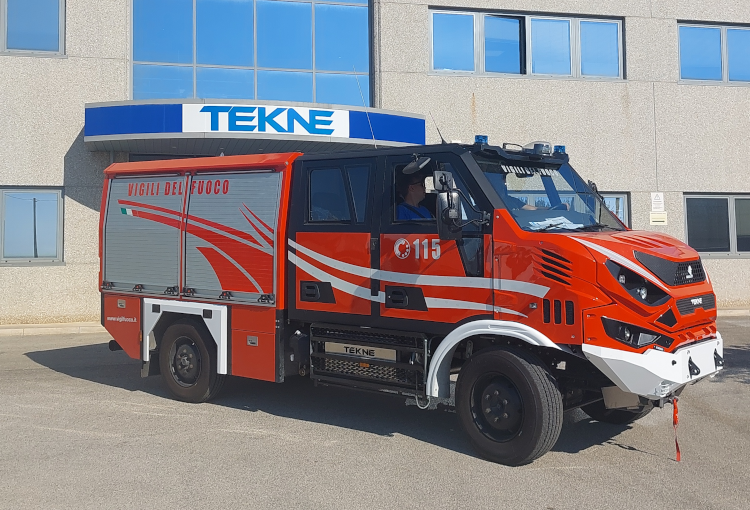

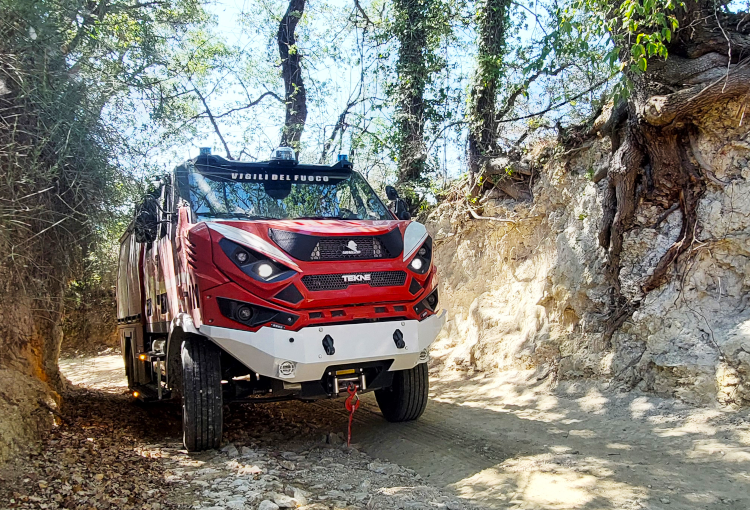

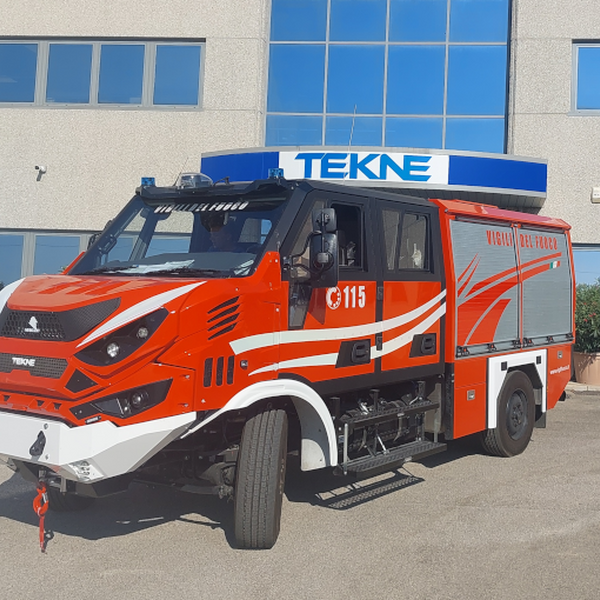

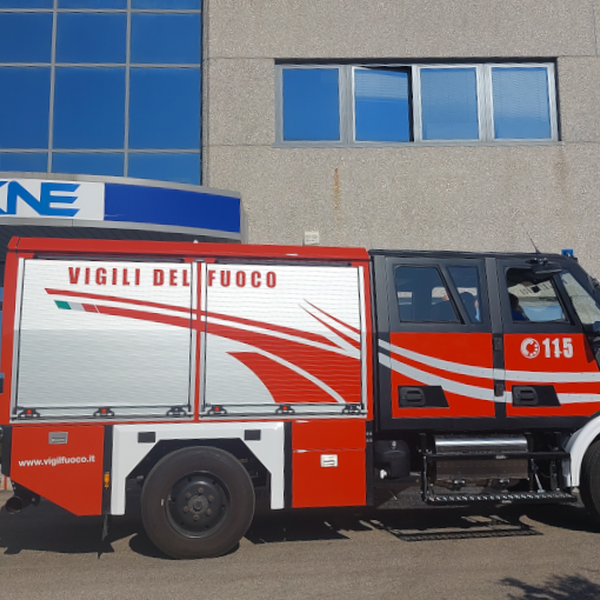

GRAELION is a 2-axle truck, with permanent 4x4 all-wheel drive.

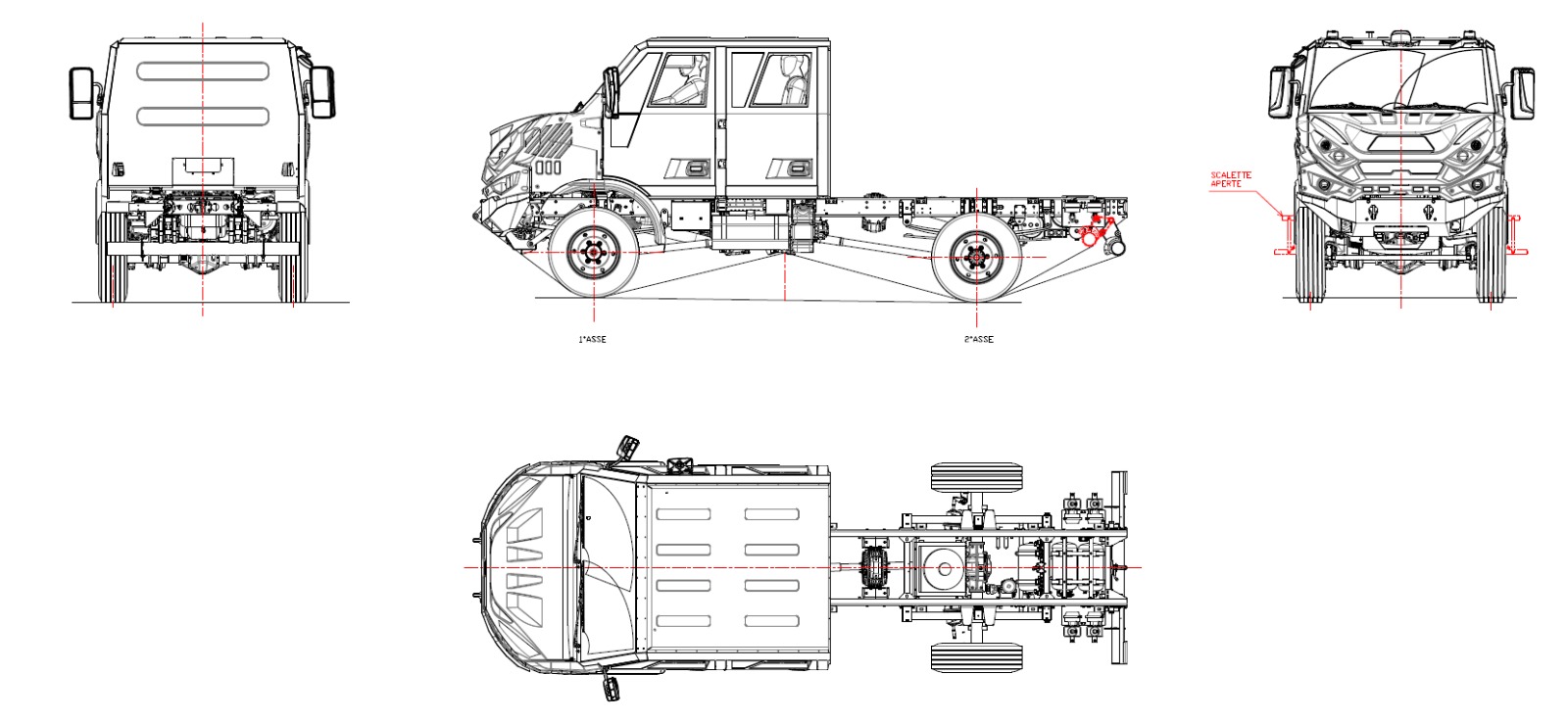

DIMENSIONS AND WEIGHT

Gross Vehicle Weight	8500 kg (available in 8800kg version)
Maximum Load on Axles	Anterior: 4000kg - Posterior: 5500kg
Wheelbase	3750 mm.
Max width	2098 mm (without mirrors)
Heigth	approx 2556 mm

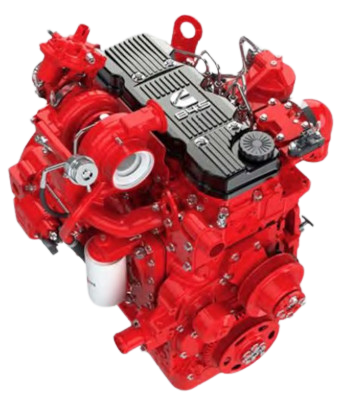

ENGINE

All the power in a compact space

Power source: Diesel
Displacement: 4.5 liters
Emissions: according to Euro VI step E
Configuration: in-line, 4 cylinders
Power: 211 hp (157 kW) @ 2300 rpm
Torque: 850 Nm @ 1200 rpm

TRANSMISSION

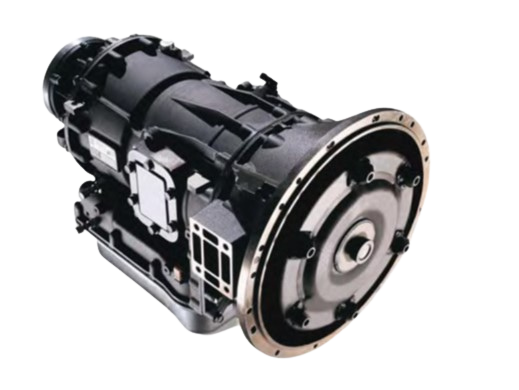

Allison automatic transmission

Gear ratios: nr. 6 + reverse
Torque converter: Single stage, three elements, polyphase.
Maximum torque: 780 Nm
Maximum power: 300 hp (224 kW)
Maximum vehicle weight: 15,000 kg

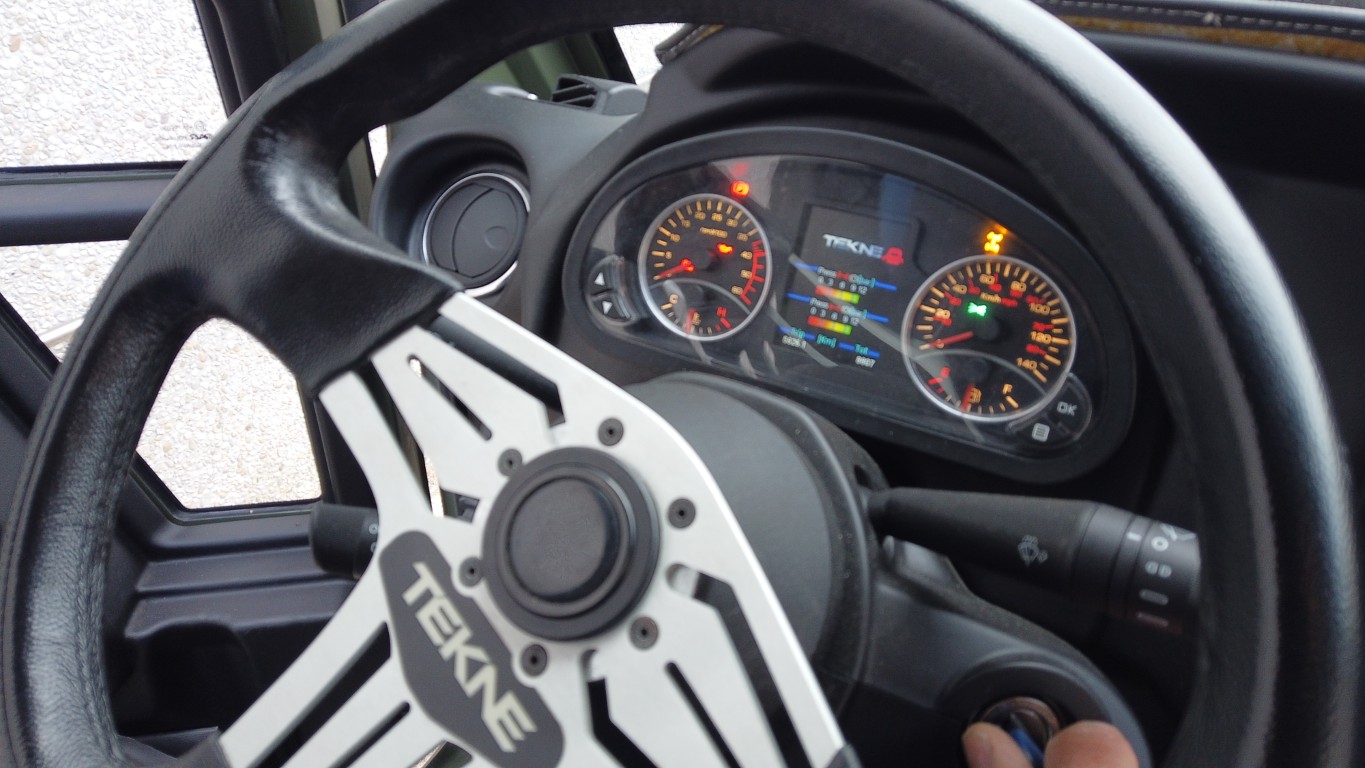

In-cab control: Lever selector

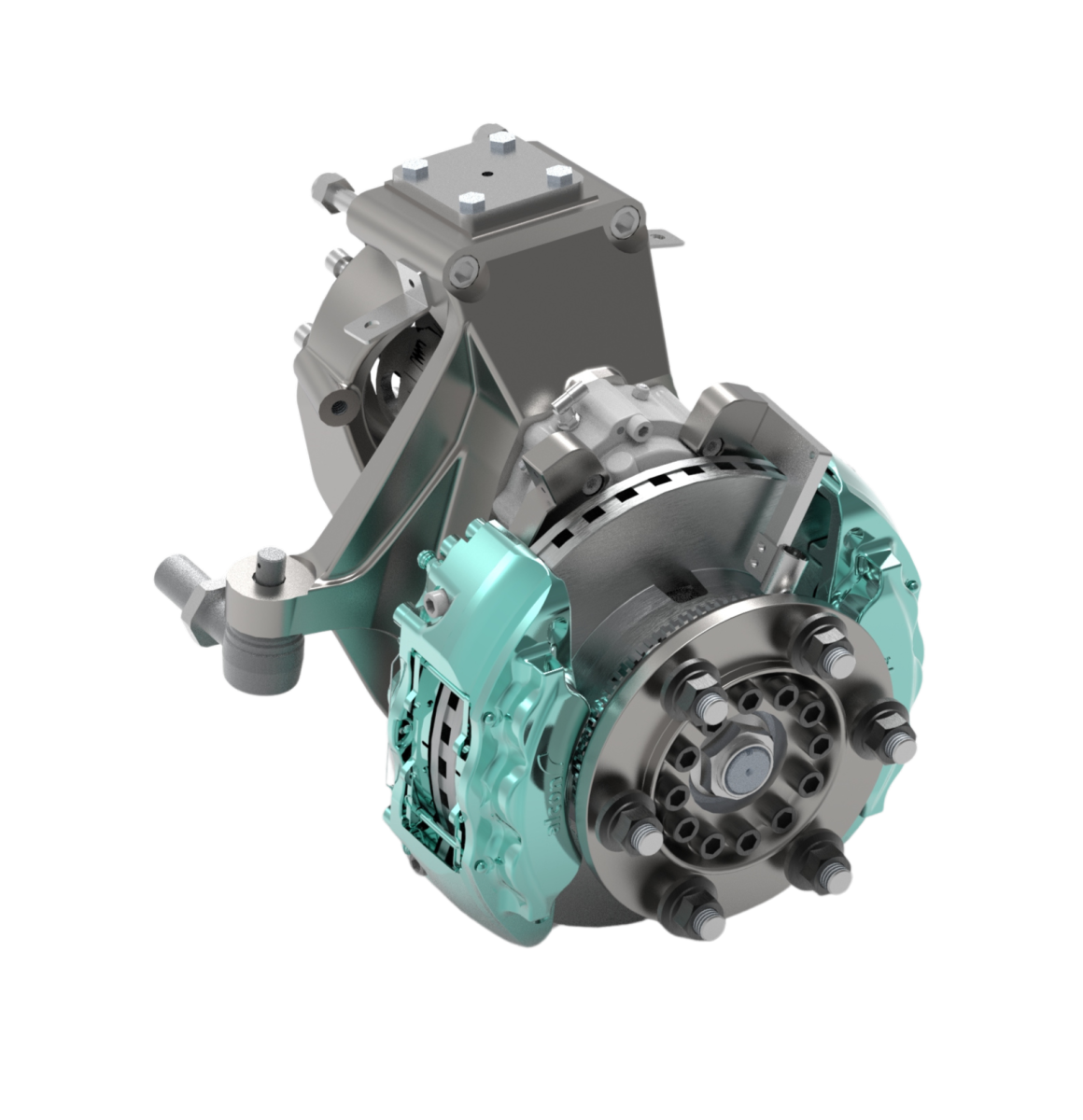

BRAKING SYSTEM

Disc, hydraulically operated on 4 wheels with split circuit

Manually operated parking brake on rear wheels

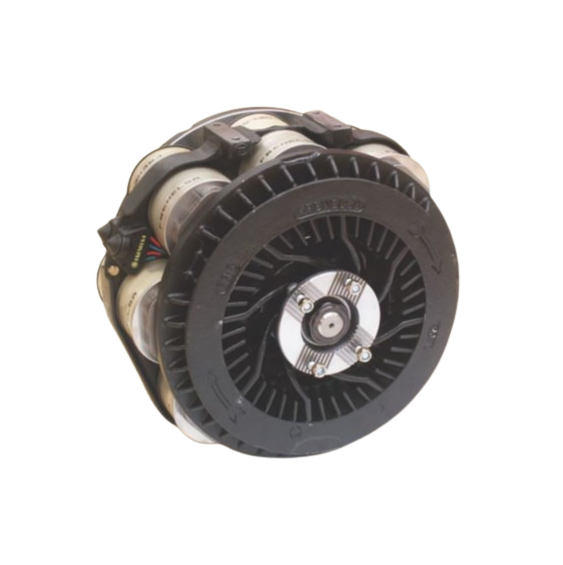

RETARDER

Additional electromagnetic retarder with independent control positioned on the dashboard which allows for slowing down braking, dissipating a large part of the braking energy and thus alleviating the load on conventional braking systems.

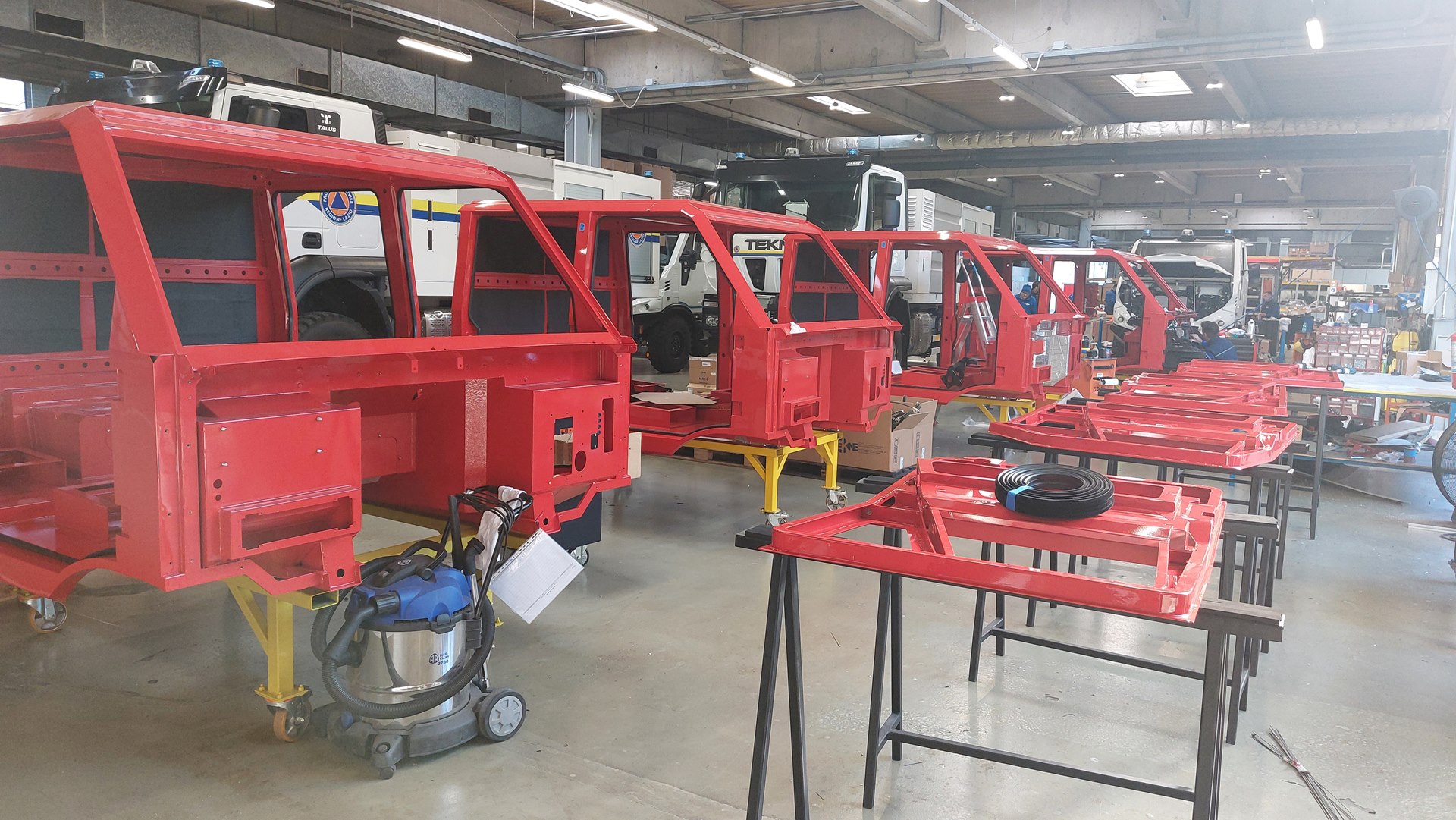

CAB

SINGLE or DOUBLE

Made of stainless steel
Up to 5 seats in the double version (3 front seats and 2 rear seats)
Space for intervention bags and racks in the central area of the possible rear area
