GRAELION

Tekne's new multi-purpose heavy-duty 4x4 vehicle - now more powerful than ever

It's here!

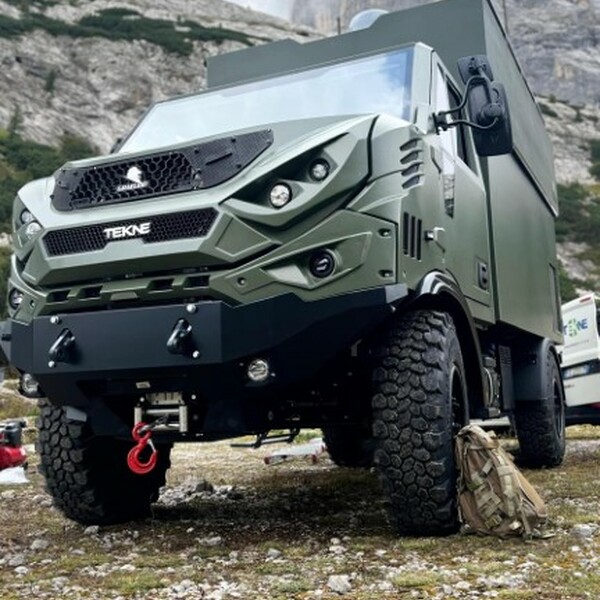

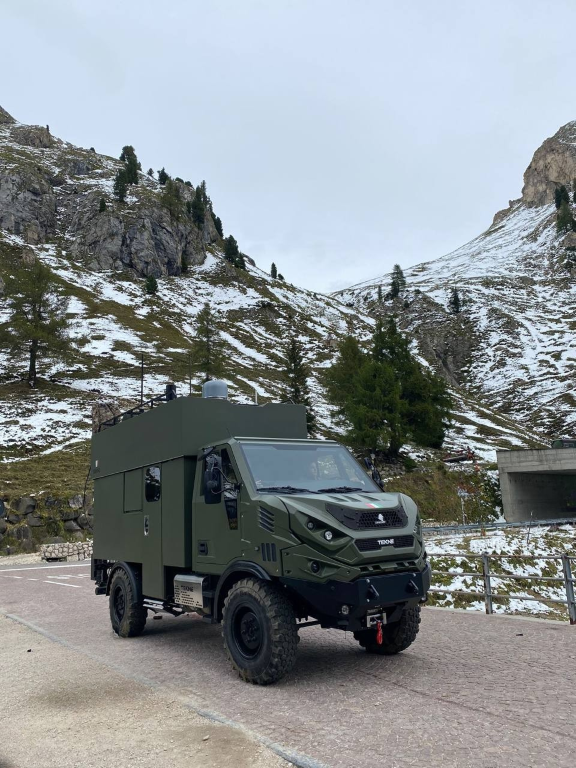

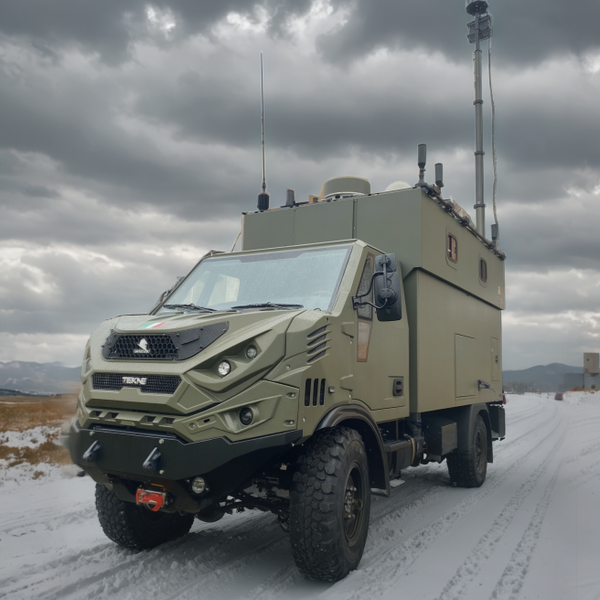

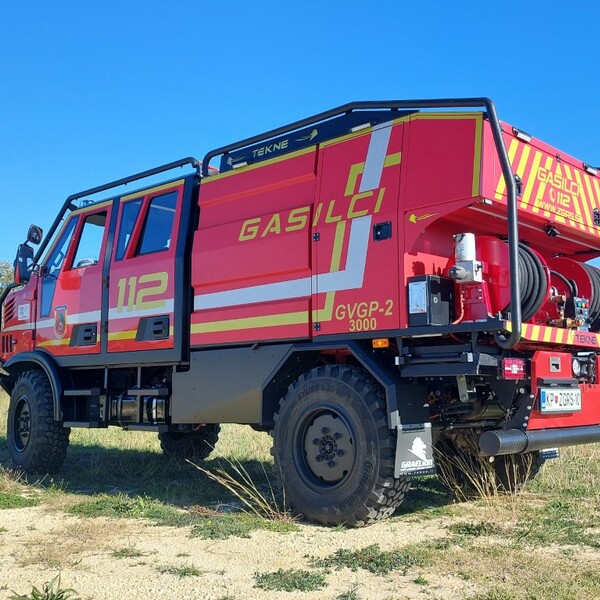

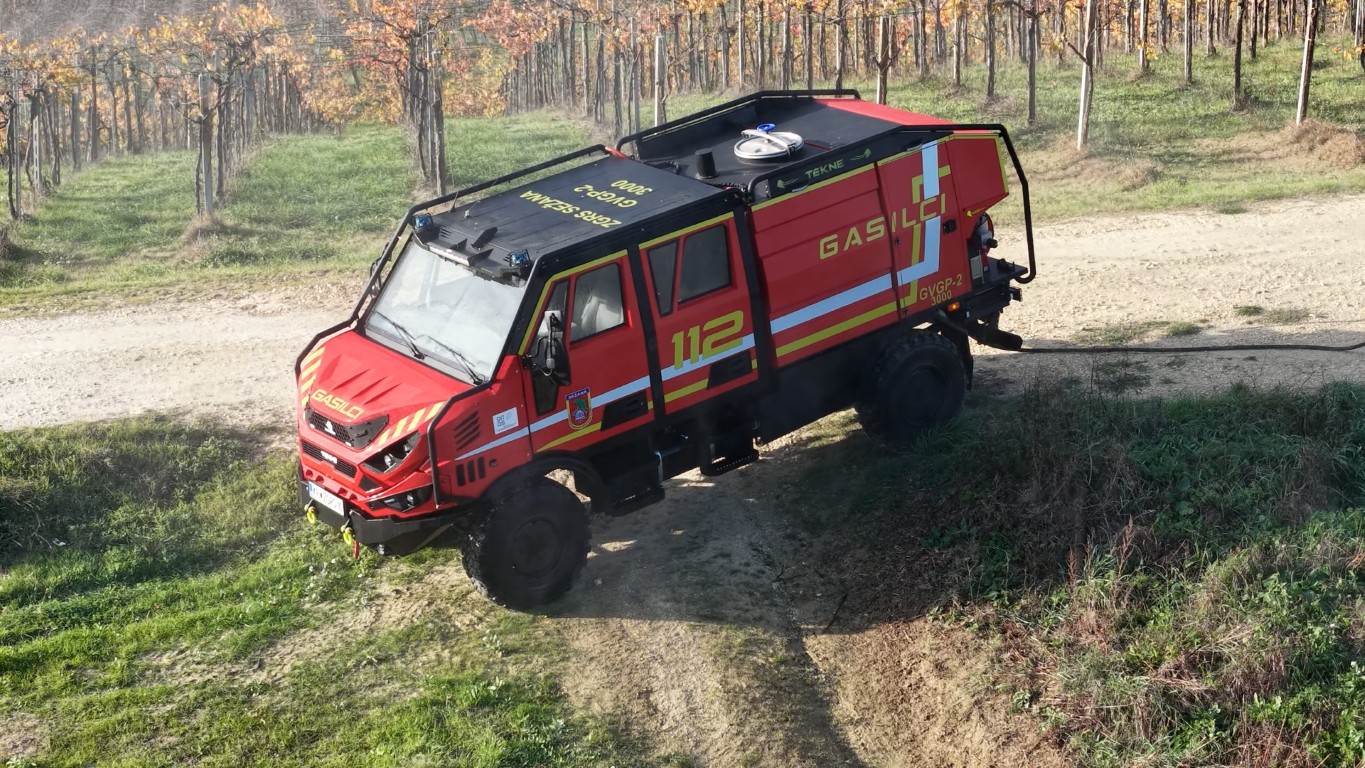

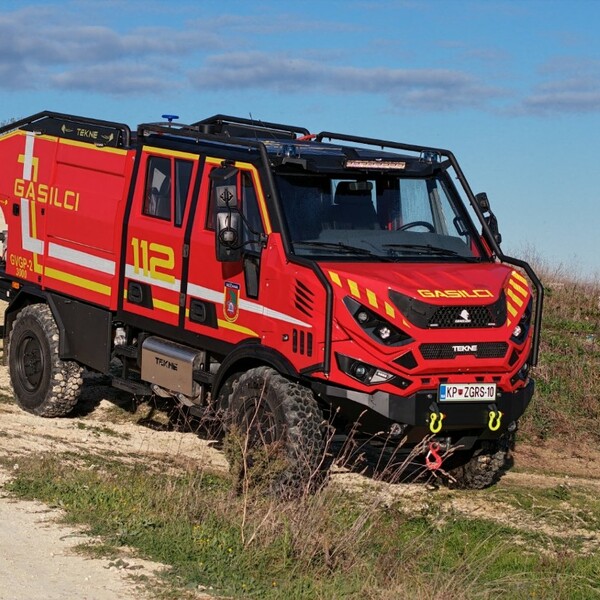

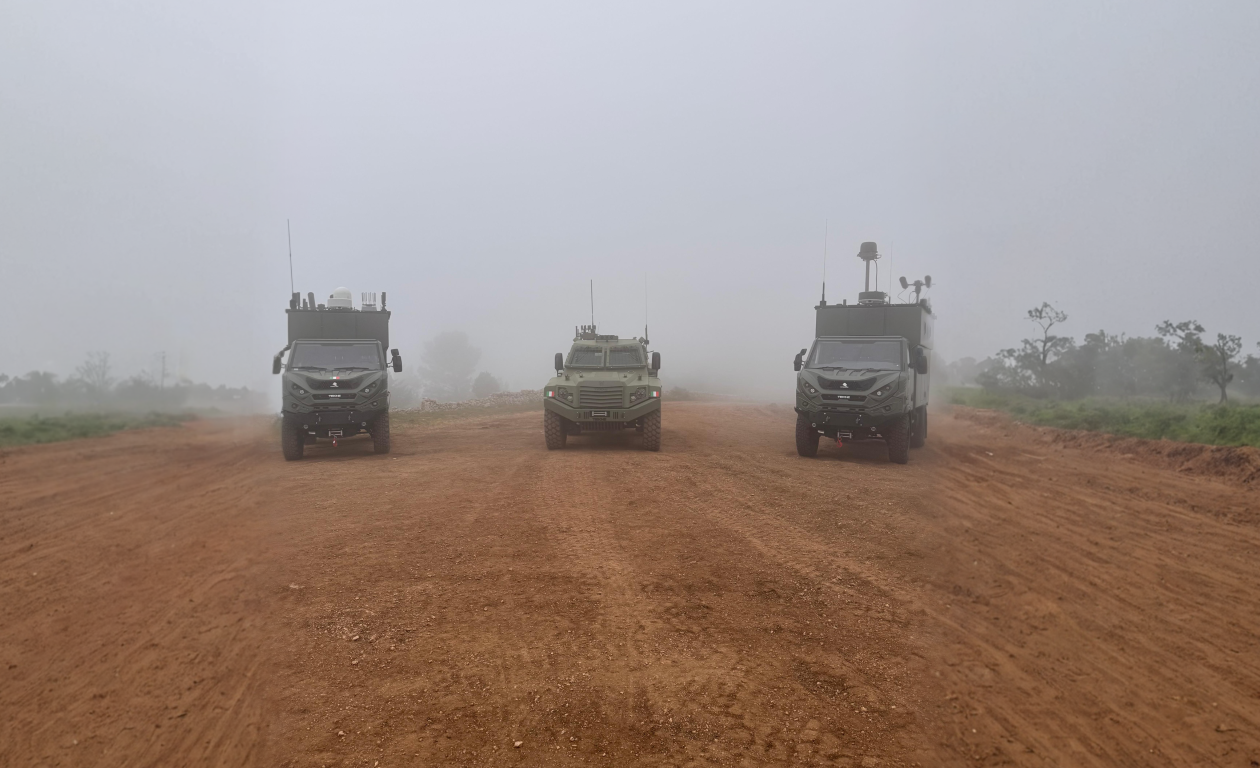

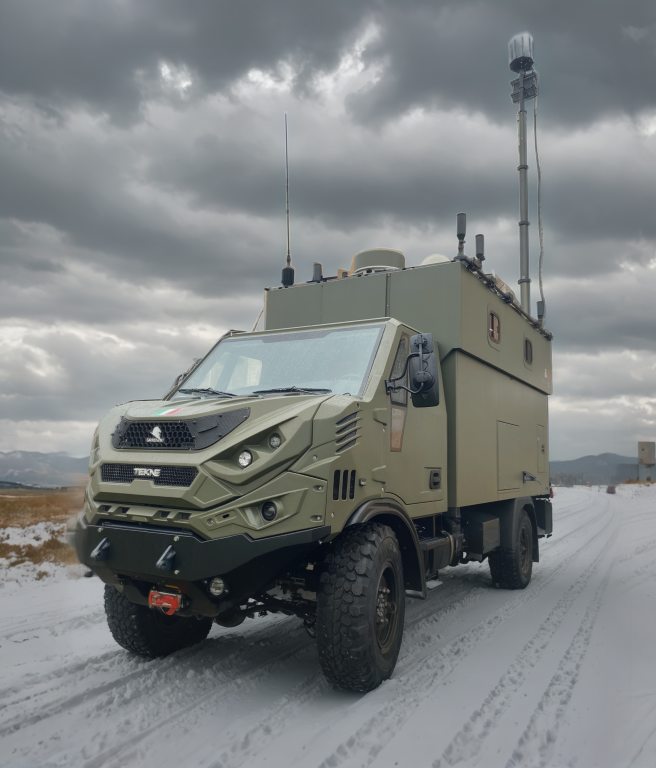

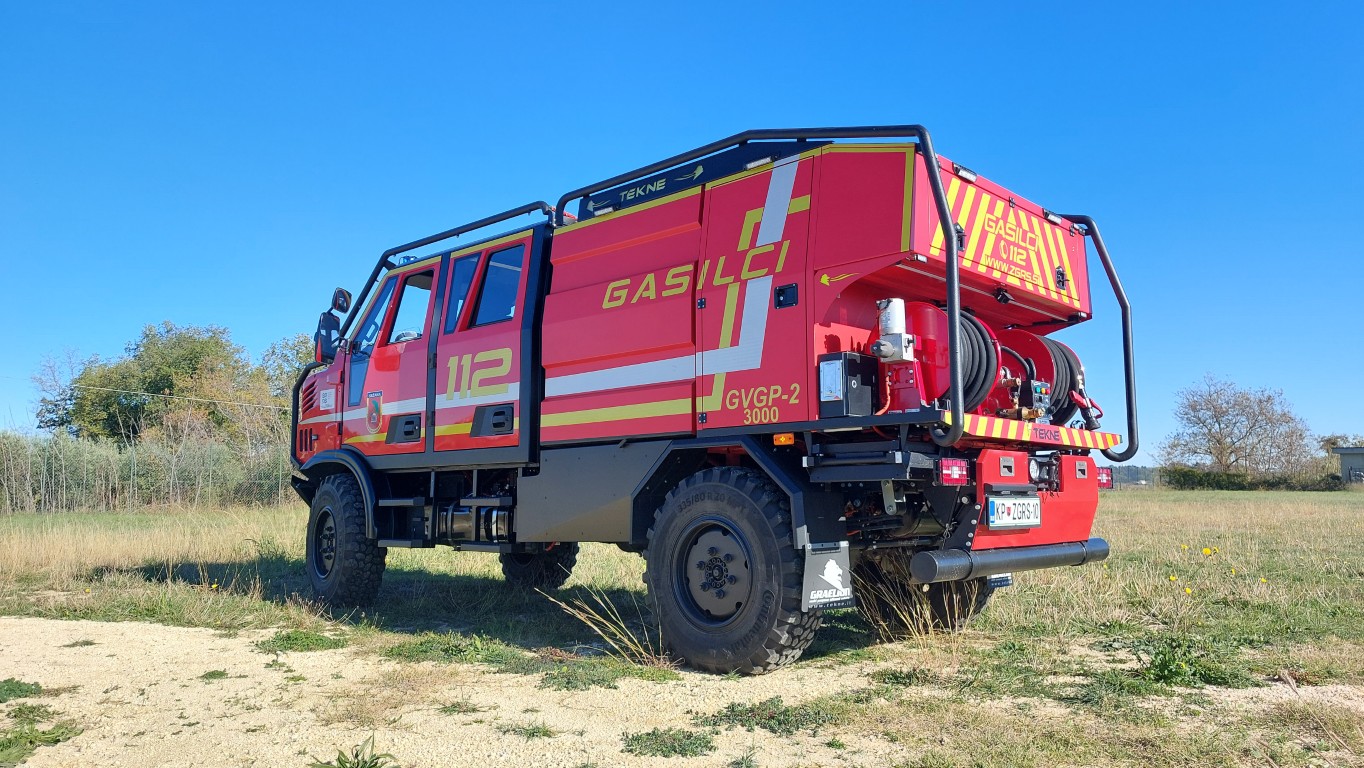

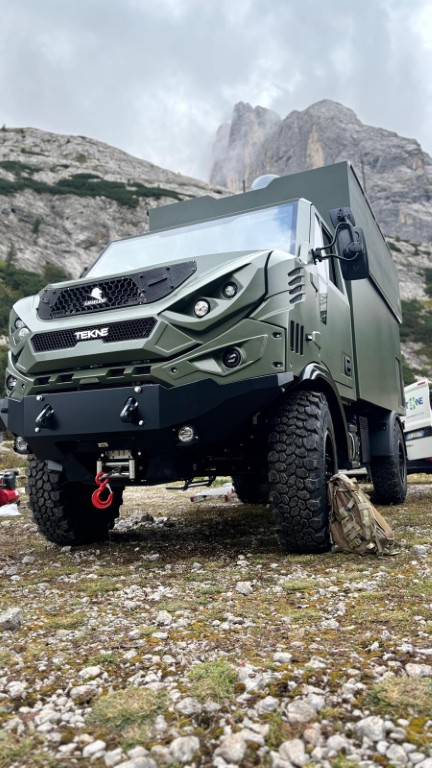

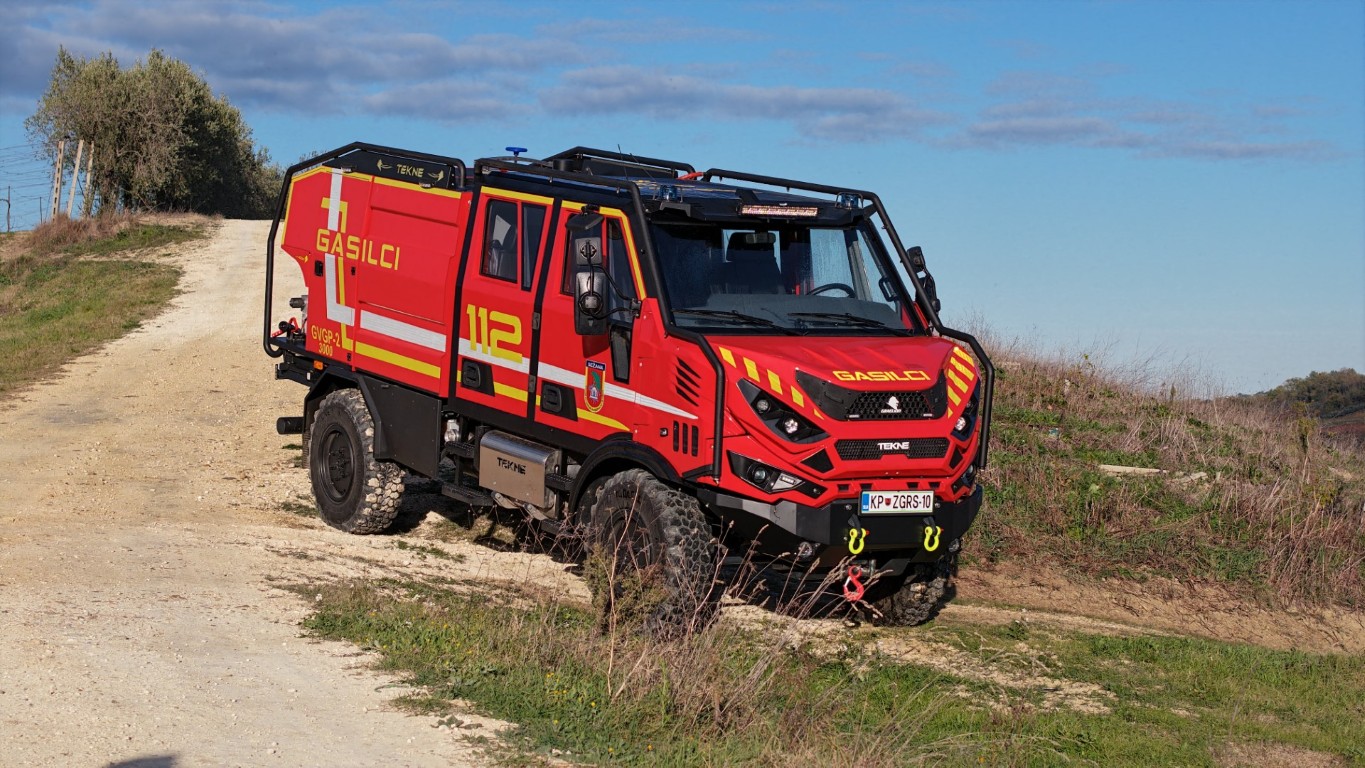

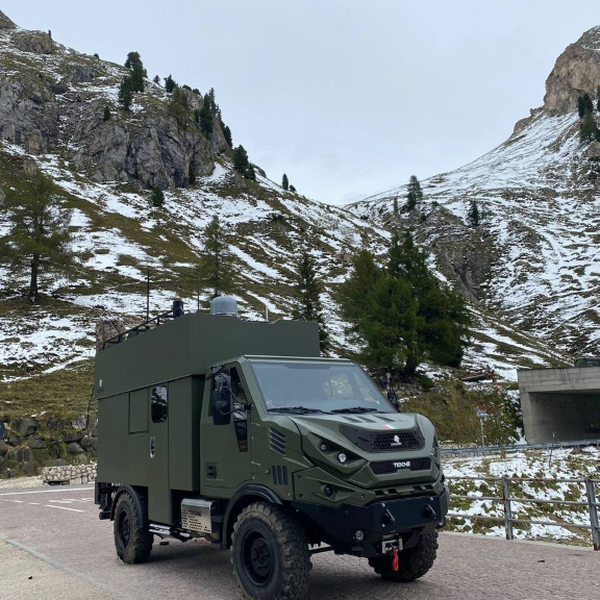

GRAELION is a 2-axle truck, with permanent 4x4 all-wheel drive.

DIMENSIONS and WEIGHT

Gross Vehicle Weigth	8800 kg (available in 8500kg version)
Max Load on Axles	Front: 4000kg - Rear: 5500kg
Curbweigth	4630kg
Wheelbase	3750 mm
Max width	2107 mm (without mirrors)
Total Length	6415mm
Total Height	2643 mm

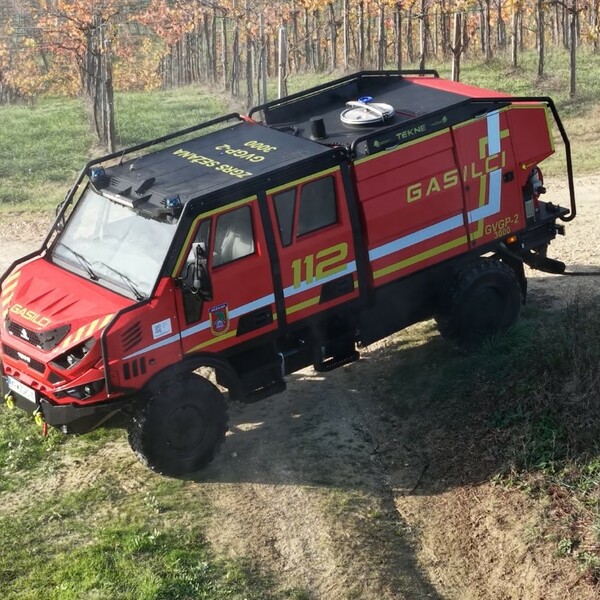

CAB

SINGLE OR DOUBLE

Made of stainless steel
Up to 5 seats in the double version (3 front seats and 2 rear seats)

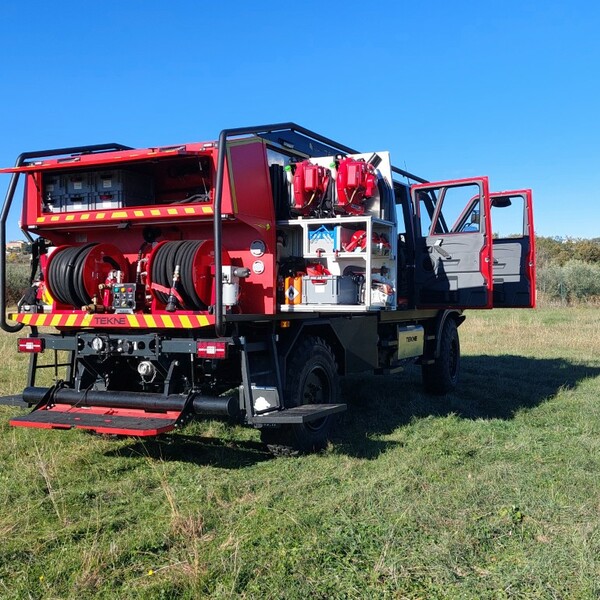

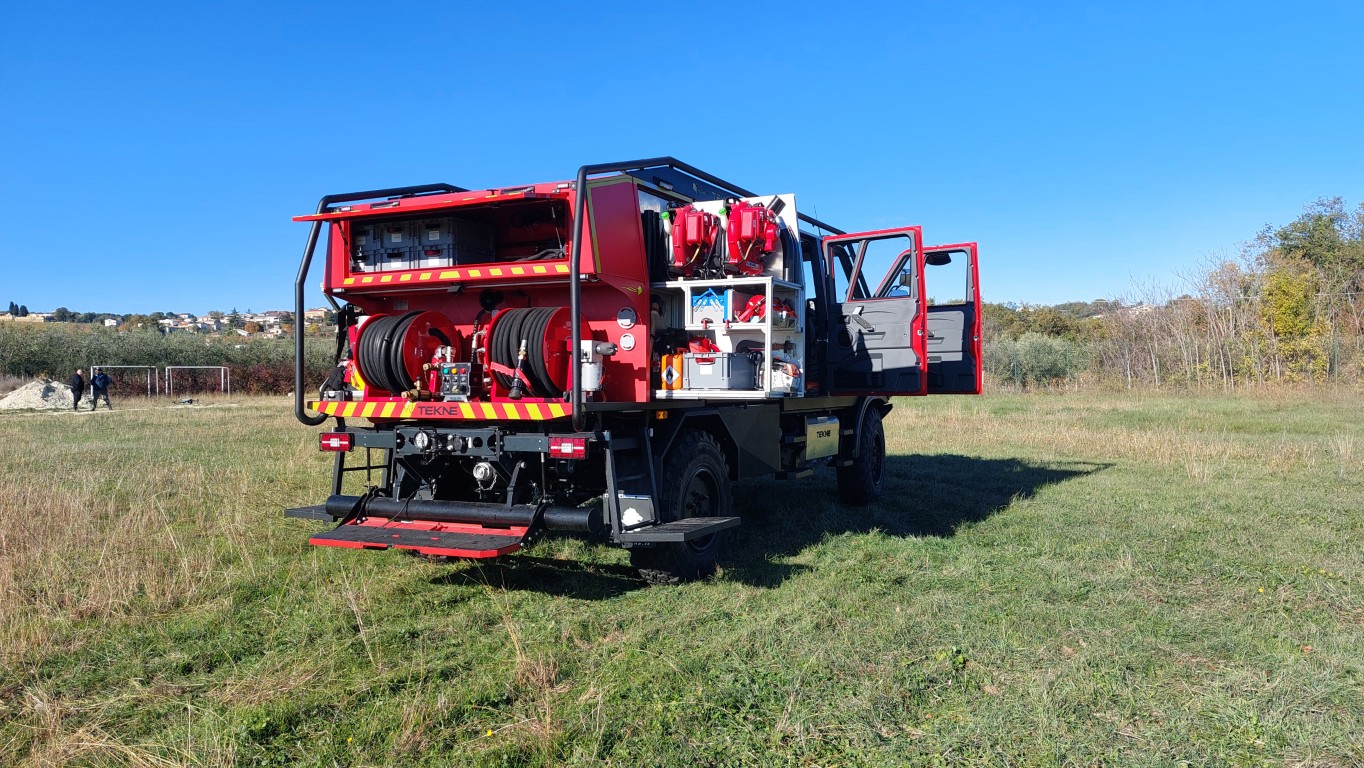

Space for intervention bags and racks in the central area of the possible rear area

ENGINE

All the power in a compact space

Power source: Diesel
Displacement: 4.5 liters
Emissions: according to Euro VI step E
Configuration: in-line, 4 cylinders
Power: 211 hp (157 kW) @ 2300 rpm
Torque: 850 Nm @ 1200 rpm

TRANSMISSION

Allison automatic transmission

Gear ratios: nr. 6 + reverse
Torque converter: Single stage, three elements, polyphase.
Maximum torque: 780 Nm
Maximum power: 300 hp (224 kW)
Maximum vehicle weight: 15,000 kg
In-cab control: Lever selector

PORTAL AXLES

DESIGNED IN TEKNE

GRAELION 88 has a strong off-road spirit, which stems in particular from the in-house designed portal axles, a solution that allows a ground clearance of over 400 mm, increasing agility in off-road use. The reduction gears integrated into the axles allow power to be transmitted to the wheels with a lower torque, reducing stress on the mechanical components and ensuring greater durability and reliability, especially on rough terrain and in harsh operating conditions.

Assale anteriore Graelion All Terrain close

BRAKING SYSTEM

Disc, hydraulically operated on 4 wheels with split circuit

Manually operated parking brake on rear wheels

RETARDER

Additional electromagnetic retarder with independent control positioned on the dashboard which allows for slowing down braking, dissipating a large part of the braking energy and thus alleviating the load on conventional braking systems.
